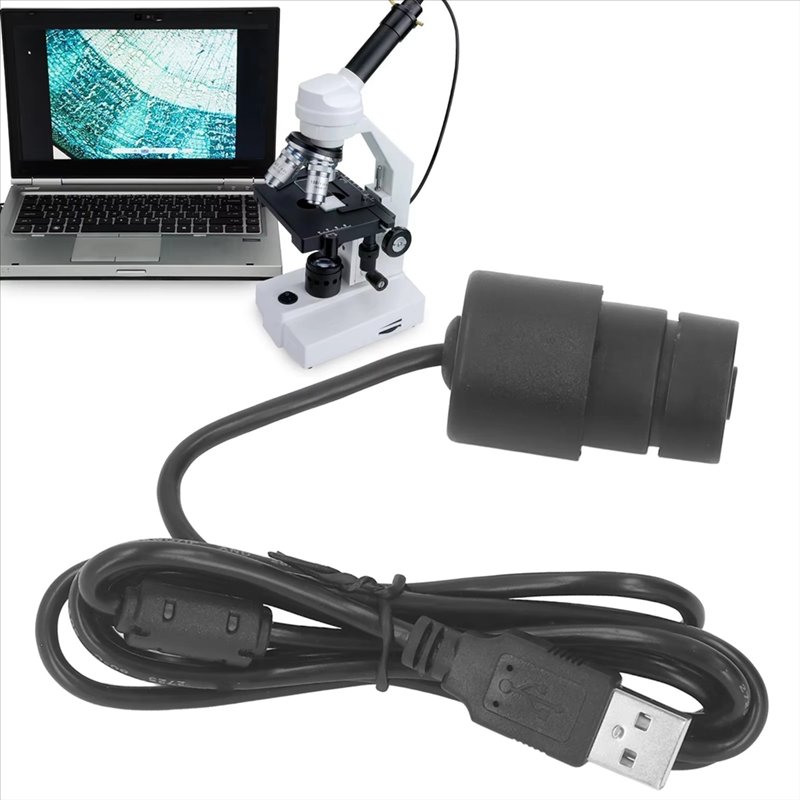

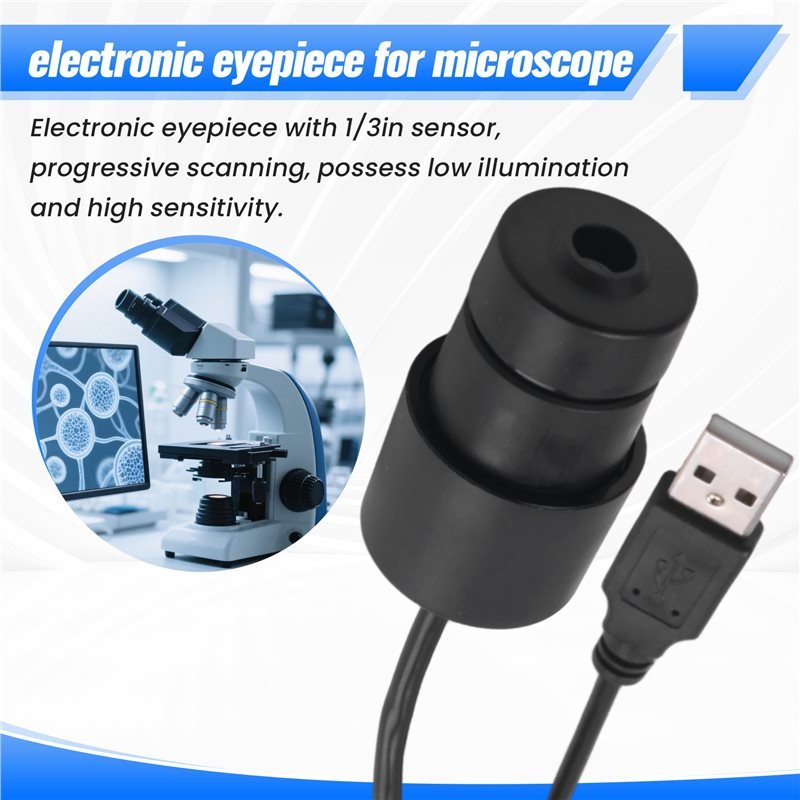

Microscope Camera (Electronic Eyepiece)

1. Product Identification
Product Name: Electronic Eyepiece Microscope Camera
Resolution: 2 Megapixel
Sensor Size: 1/3 inch CMOS
Interface: USB 2.0
Mount Type: Standard eyepiece insertion (typically 23.2 mm; adapters for 30 mm / 30.5 mm optional)
Product Category: Digital Microscopy Imaging Device

Technical Specifications
Parameter
Specification
Image Sensor
CMOS, 1/3″
Effective Pixels
~2.0 MP (1600 × 1200 typical)
Scanning Mode – Progressive
Frame Rate – Up to 30 fps (resolution dependent)
Sensitivity- High (optimized for low-light microscopy)
Exposure Control – Auto / Manual
White Balance. – Auto
Output Format. – JPEG / BMP / AVI
Connectivity – USB 2.0 plug-and-play
Power Supply – Via USB (5 V DC)
Software Compatibility – Windows (XP–11), limited macOS support (driver-dependent)

Optical & Mechanical Compatibility
Fits into standard monocular/binocular microscope eyepiece tubes
Compatible with:
Biological microscopes
Stereo microscopes
Educational lab microscopes
Field of view depends on:
Objective magnification
Eyepiece adapter used

Functional Features
Real-time image display on PC monitor
Digital image and video capture
Measurement and annotation capability (via software)
Suitable for:
Teaching demonstrations
Sample documentation
Basic image analysis

Performance Characteristics
Low-light performance: Enhanced sensitivity allows imaging under reduced illumination
Image quality: Adequate for routine lab visualization; not suitable for high-end research imaging
Latency: Minimal under USB 2.0
Noise level: Moderate at high gain

Applications
Academic laboratories (secondary and tertiary institutions)
Clinical teaching (basic pathology, microbiology)
Industrial inspection (low-resolution tasks)
Field documentation where portability is required.
